QIDI Box

Unleashing Colors, Break Material Limits

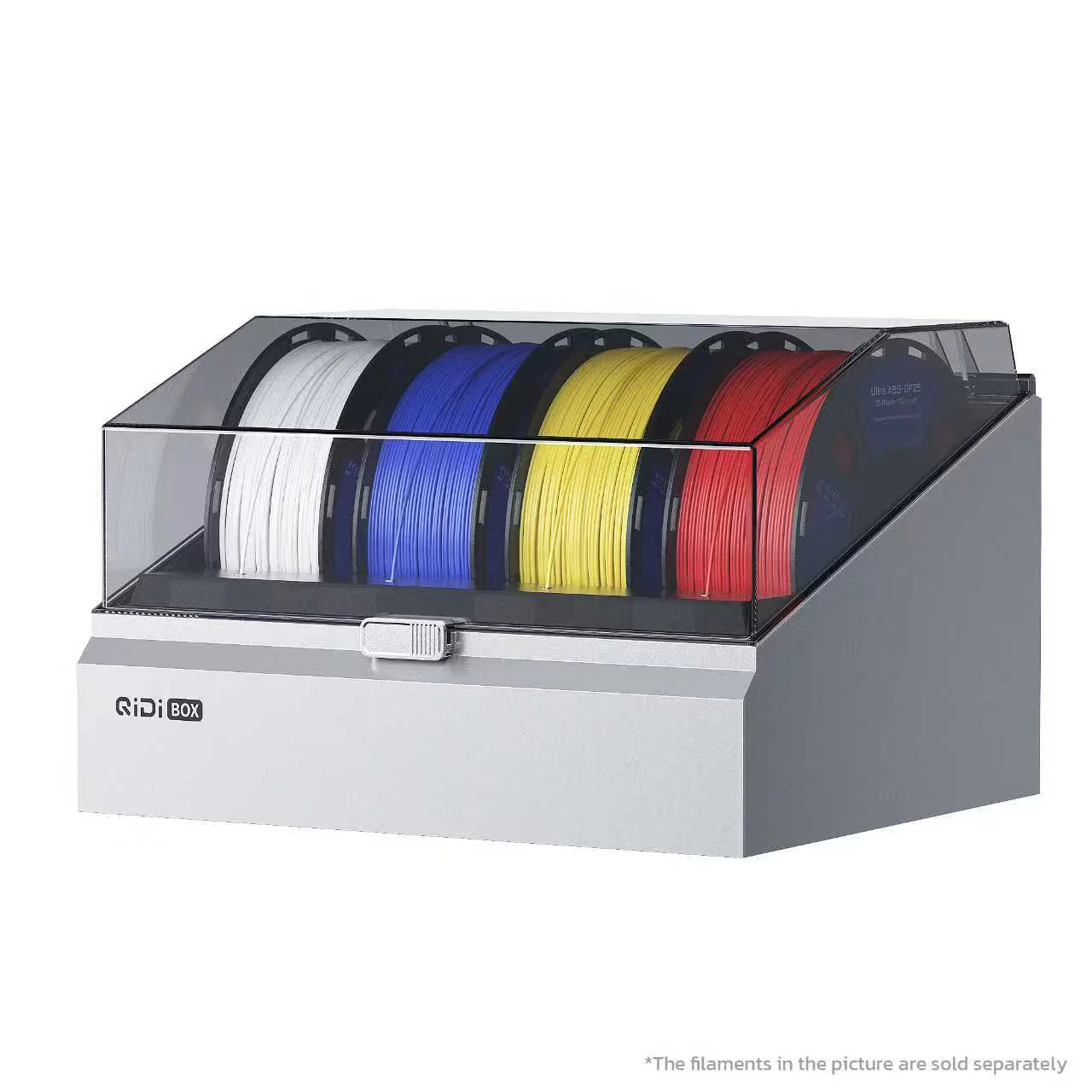

QIDI Box

Unleashing Colors
Break Material Limits

16-Color Multi-Material 16-Color Multi-Material

Chain 4 QIDI Boxes to unlock

16-material freedom

Dual Gears

From tough composites to vibrant colors — no compromises

65°C Drying

Real-time drying while Printing

NFC

NFC Intelligent Recognition

What can QIDI Box do?

QIDI Box - Your Personal Color Partner

DIYers, Families, Designers - And You

QIDI Box - Break Your Material Limits

Advanced multi-material extrusion redefines what's possible

Dual-Gear Power for Tough Materials

The hardened steel extrusion system offers long-lasting durability and stable feeding for a wide range of filaments—including carbon fiber, fiberglass and composites.

Support Removal Made Simple

The QIDI Box enables snap-away supports or dissolvable filaments—choose the easiest way to get clean prints, every time.

65℃ Drying While Printing

Always dry, always ready. The QIDI Box ensures stable filament conditions for high-quality prints

Filament Auto-Reload

The QIDI BOX switches spools seamlessly, ensuring nonstop printing and minimal filament waste.

NFC Intelligent Recognition

Automatically matches QIDI Filament settings, no manual input required.

Comprehensive Printing Safety Protection

Combining a smart PTC fuse with dual temperature sensors for real-time monitoring, the system automatically cuts power when detecting abnormal temperatures to ensure safe operation.

QIDI BOX Technical Specification
Item		Specification
Body	Dimensions	357300234 mm
	Package Dimensions	360400295mm
	Net Weight	4.35kg
	Gross Weight	6.15kg
	Housing Material	ABS/PC
	Number of Slots	4
	Expandable number	≤4（QIDI BOX Expansion Kit)
	Filament Channel Indicator Lights	4 individual indicator lights, one for each filament channel
	Feed Gear	Hardened Steel Dual Gears
	Filament Feeding Motors	4 × 42-stepper motors
	Exhaust Vent	Manual
Printing	Filament Supported	PLA, PETG, ABS, ASA, PET, PA, PC, PVA (dried), BVOH (dried), PP, POM, HIPS,TPU 64D, ABS-CF/GF, PLA-CF/GF, PETG-CF/GF，PPS-CF，PET-CF/GF
	Filament Not Supported	TPE, Generic TPU, PVA (damp), BVOH (damp), TPU 95A, QIDI PAHT-CF, some Silk materials (PLA Silk) and PLA Glow-in-the dark materials and other overly rigid or overly flexible filaments
	Filament Diameter	1.75 mm
	Spool Dimension	Width: 50 mm-72 mm Diameter: 195 mm-202 mm QIDI BOX is not compatible with cardboard spools. If you prefer to use cardboard spools, we strongly advise using a Spool Adapter/Spool Adapter Ring
	RFID Identification	Supported
	Filament Monitoring	Supports tangle detection, clog detection, and run-out detection
	Auto Filament Refill	Automatically switches to backup spool when filament runs out
	Multi-color Printing	Supported – up to 16 colors (requires additional QIDI BOX and accessories, sold separately)
	Filament Drying	Supported and Support Simultaneous Drying and Printing
Drying	Maximum Temperature	65℃
	Filament Supported	PLA、ABS、ASA、PA、PC、PET、PETG、PPS、PLA Wood
	Sealed Storage	Supported
	Temperature and Humidity Detection	Supported, Real-time Temperature and Humidity can be Displayed on the Screen and QlDl Studio.
	Desiccant Storage	Supported
Power Supply	Voltage	110V / 220–240V AC, 50/60Hz (region-specific models available) Note: The QIDI BOX power cord is for QIDI BOX use only. Do not use it with other devices!
Power Supply	Max Rated Power	245W
